Facade Cleaning Gantry system (BMU- Gantry System)

Facade Cleaning Gantry system (BMU- Gantry System) Specification

Surface Finish
Corrosion-resistant finish

Shape
Rectangular Gantry with Suspended Platform

Motor Power
Single/dual motor, each 1.5 to 3 kW

Features
Traversing system, Overhead support, Detachable work platform, Emergency descent mechanism, Safety interlocks

Usage & Applications
Facade & glass cleaning, building maintenance for high-rise buildings

Noise Level
Below 75 dB

Capacity
240 Kg

Lubricating System
Automatic/Manual Grease Lubrication

Drive Type
Motorized Electric Drive

Size
As per Building Requirement

Product Type
Other

Material
Stainless Steel/Aluminum/Mild Steel

Technology
Other

Power Source
Electricity

Power
Typically 2.2 kW to 7.5 kW motor

Voltage
380V / 415V, 3-Phase, 50/60 Hz

Pressure
N/A (not applicable)

Surface Treatment
Hot-dip galvanized / powder coated

Dimension (L*W*H)
Customizable as per site requirement (Typical length 6-12 meters)

Weight
Depends on size, typically 800-2000 kg

Color
Metallic Silver or Custom

Operating Temperature
-10C to +50C

Installation Type
Rooftop installation, fixed or mobile on rails

Compliance
Meets OSHA/EN1808 requirements

Control System
Remote wired pendant & onboard control panel

Maintenance Access
Swing-out panels for easy maintenance

Protection Rating
IP55 Electrical Components

Anti-Collision System
Optional infrared/ultrasonic anti-collision sensors

Platform Material
Aluminum alloy non-slip floor, stainless steel railings

Moving Speed
Traversing speed: 6-15 m/min, Lifting Speed: 9-11 m/min

Safety Devices
Overload sensors, Emergency stop button, Anti-tilt cut-off, Fall arrestor

Emergency Lowering
Manual descent mechanism for power failure

Lifeline Attachment Points
Provisioned for double lifelines & harnesses

Power Connection
Direct from building supply or dedicated genset

Max Work Height
Up to 200 meters (as per design)

Deck Plate Loading
Designed for 150 kg/m2

Facade Cleaning Gantry system (BMU- Gantry System) Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
4 Units Per Month

Delivery Time
1

About Facade Cleaning Gantry system (BMU- Gantry System)

Faade Cleaning Gantry System (BMU Gantry System)

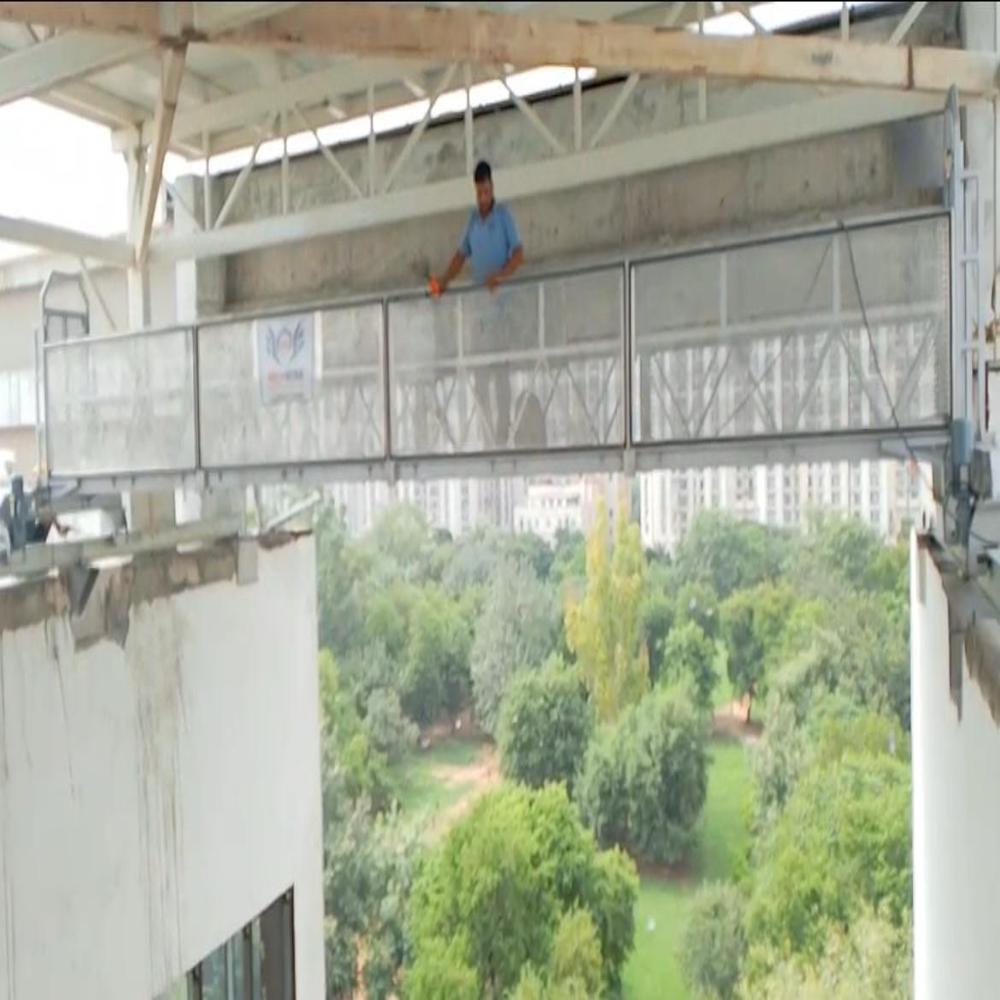

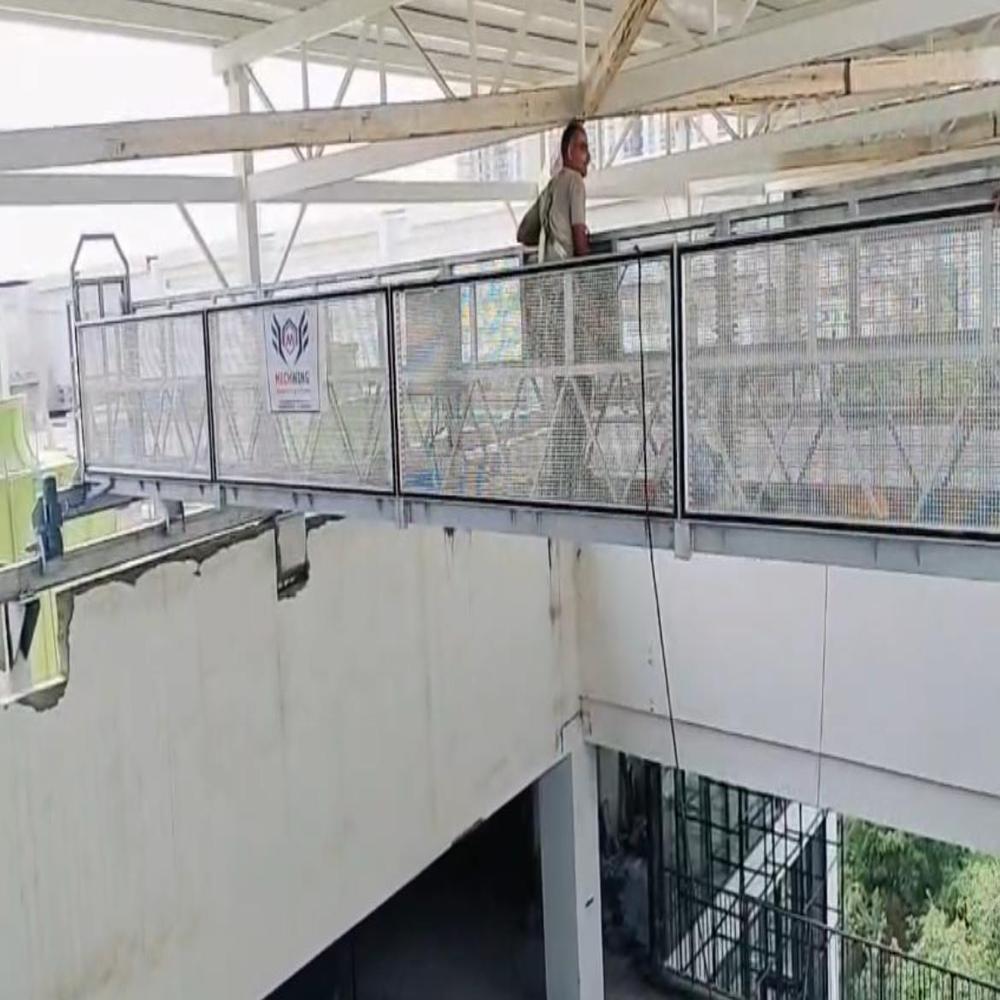

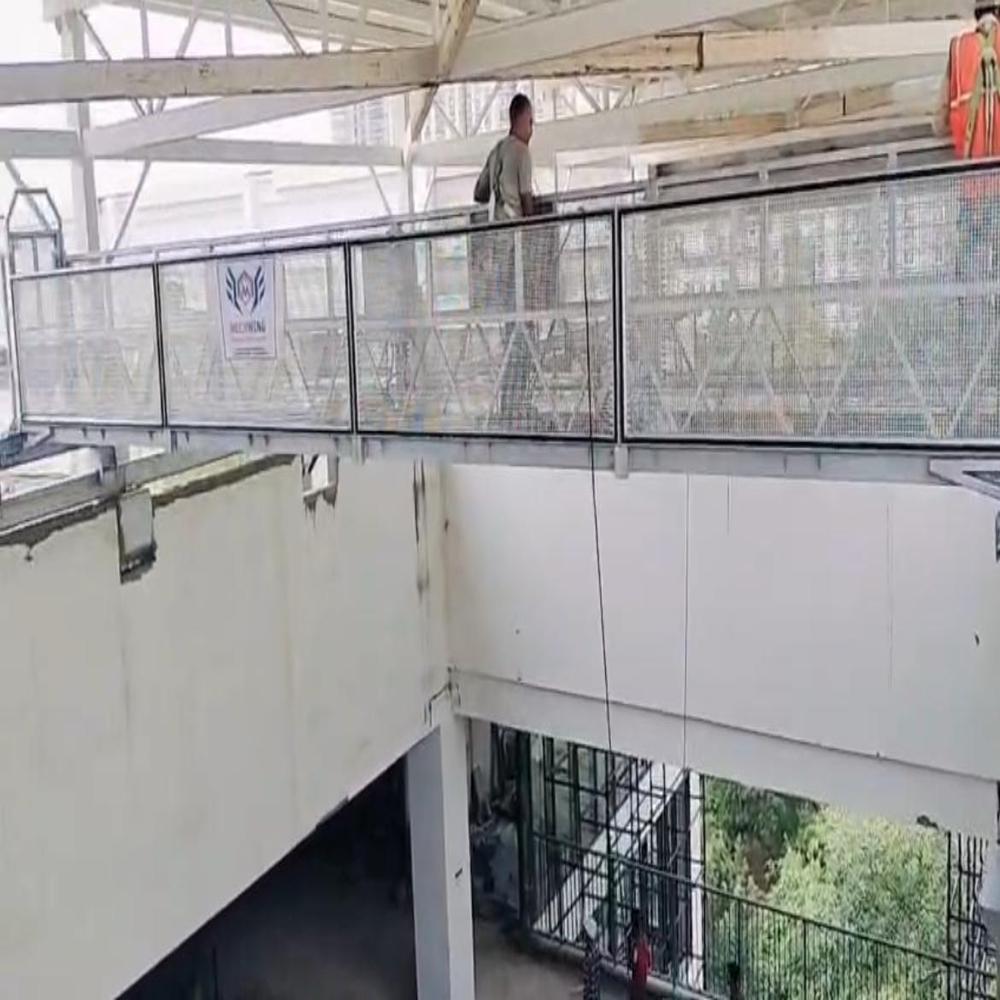

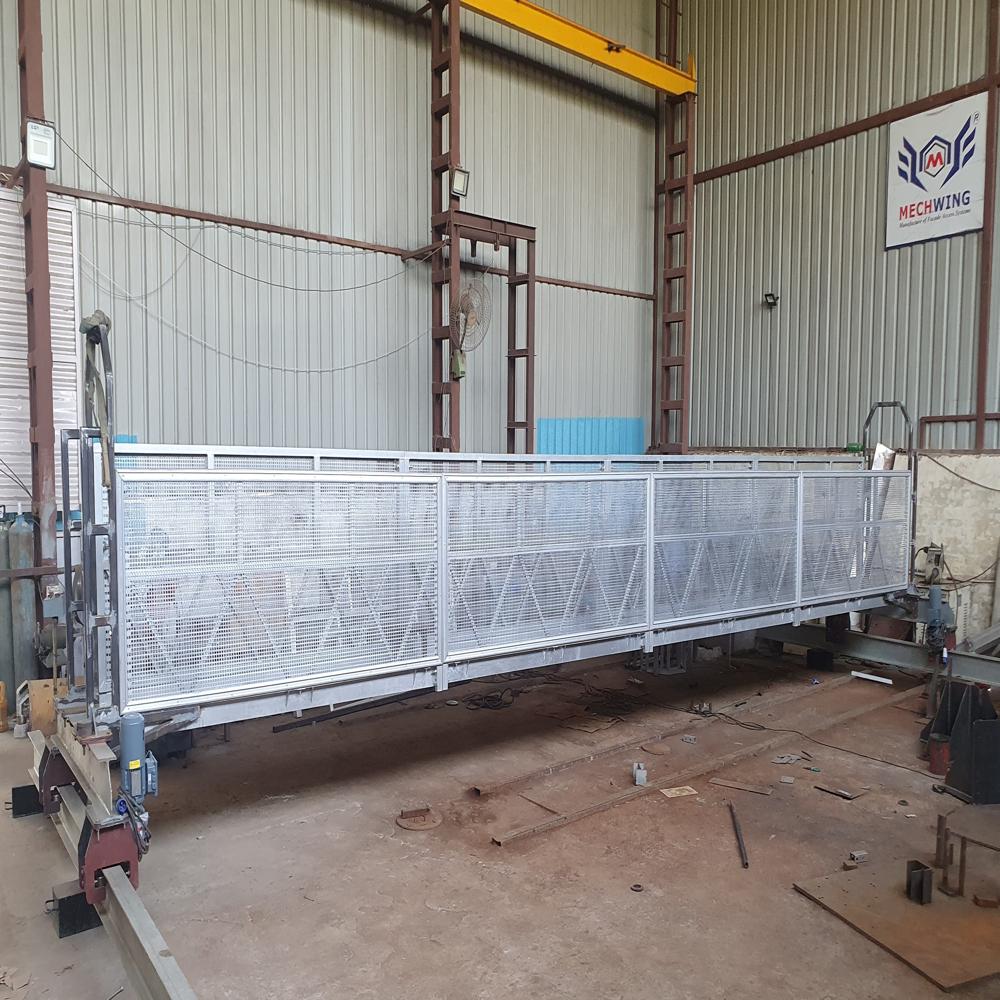

A Faade Cleaning Gantry System is a permanently installed mechanical platform designed to provide safe and efficient access for cleaning and maintenance of building faades, especially on large or complex structures. The system typically consists of a motorized gantry frame that travels horizontally on rails installed along the roof edges or parapet, and a suspended platform or cradle that moves vertically along the faade using hoisting mechanisms.

The gantry system ensures stable and precise movement for operators, allowing them to reach all exterior surfaces/ Below the Skylight area of the building. It is commonly used on high-rise buildings, glass faades, and curved or inclined structures where manual or temporary access is impractical.

Applications:
Ideal for high-rise commercial towers, corporate offices, hotels, hospitals, and architectural faades requiring regular cleaning and maintenance.

Advanced Safety and Compliance

The BMU Gantry System is engineered with multiple safety features, including overload sensors, anti-tilt cut-off, and fall arrestors. It further ensures worker protection with IP55-rated electrical components and emergency lowering mechanisms. The system meets OSHA and EN1808 regulations, making it fully compliant for building maintenance at height.

Flexible Design and Easy Operation

Customizable to fit various building dimensions, the gantry system offers both fixed and mobile rooftop installation. Operators can control the system via a remote wired pendant or an onboard control panel, with smooth traversing and lifting speeds. Swing-out maintenance panels and detachable work platforms provide simple access for servicing and repairs.

Durable and Efficient for High-Rise Cleaning

Constructed with corrosion-resistant material and available in a range of finishes, the facade gantry is built to withstand demanding weather conditions, operating efficiently from -10C to 50C. Its powerful motor drives, load capacity of 240 kg, and robust platform design make it ideal for continuous use and reliable cleaning operations for high-rise exteriors.

FAQ's of Facade Cleaning Gantry system (BMU- Gantry System):

Q: How is the Facade Cleaning Gantry System typically installed?

A: The gantry system is designed for rooftop installation and can be either fixed in position or made mobile via rails. This flexibility allows it to accommodate the architectural layout and maintenance requirements of different high-rise buildings.

Q: What control options are available for operating the BMU Gantry System?

A: Operators can manage the system using a remote wired pendant or an onboard control panel, enabling precise control over traversing and lifting actions during facade cleaning and maintenance tasks.

Q: When should the emergency manual descent mechanism be used?

A: The emergency manual descent mechanism is implemented during power failures or system malfunctions, allowing users to safely lower the platform and exit the building's facade without electrical power.

Q: Where are the lifeline attachment points located, and what is their purpose?

A: Lifeline attachment points are provisioned on the platform, allowing for secure attachment of double lifelines and harnesses. These are essential for worker safety, preventing falls during maintenance operations at height.

Q: What processes are involved in regular maintenance of the gantry system?

A: Regular maintenance involves checking the lubrication system (automatic or manual), inspecting safety devices, and ensuring all panels and moving components are in proper working condition. Swing-out maintenance panels provide fast and easy internal access.

Q: What are the main benefits of using a motorized gantry system for facade cleaning?

A: The motorized gantry system enables safe, efficient, and thorough cleaning of building exteriors. It offers operator safety, quick movement, adaptable installation, and robust corrosion-resistant materials for long-term durability.
